| Product Name: | Entrance Turnstile Gate | Operation Temperature: | -25°C To +75°C |
|---|---|---|---|
| Access Width: | ≤600mm | Motor: | 0.5NM/24V (Fully Automatic) |
| Communication Connection: | RS485 Communication Module Standard | IP: | IP54 |
| Input Connection: | +12V Level Signal Or Pulse Wide>10ms DC12V | Relative Humidity: | <90%, No Condensation |
| Power Voltage: | AC220V/110V±10% 50HZ/60H | Passing Speed: | ≤40 Persons/min. (IC Ca |
| High Light: | Metro Tripod Turnstile Gate,SS304 Tripod Turnstile Gate,Tripod stainless steel turnstile |
||

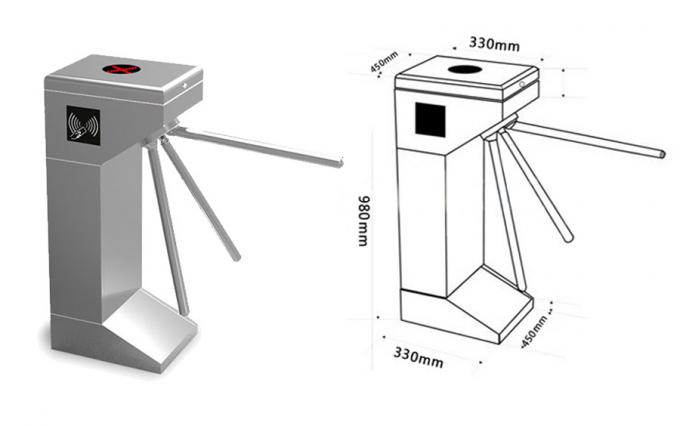

Vertical Metro Tripod Turnstile Gate 304 Stainless Steel Indoor Outdoor
UNIQSCAN vertical three roller stainless steel indoor outdoor metro gate entrance turnstile gate
Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
2. Main Functions and Features of the System
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.
2) DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit, or reading card in a way while barring in the other, or read card in a way while free passage in the other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.
5) It has automatic function of opening or closing when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration. It is able to realize far end control and management with the help of administrative computer.
7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard in accordance with the requirements of the users.
8) Counting the passing people number automatically, and with LED display
9) Direction indicator function, showing passing or prohibiting for the people
3. Technical Data:
| Item | Full Automatic DC Brushless Motor Type Tripod Turnstile | |
| 1 | Power Voltage | AC220V/110V±10% 50HZ/60HZ |
| 2 | Operation Temperature | -25°C to +75°C |
| 3 | Relative Humidity | <90%, no condensation |
| 4 | Access Width | ≤600mm |
| 5 | Passing Speed | ≤40 Persons/min. (IC Card) |
| 6 | Motor | 0.5NM/24V (Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>10ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard |
| 9 | Material | Stainless Steel 304; Thickness is no less than 1.5mm |
| 10 | IP | IP54 |
| 11 | Colour | SSB (US32D) - Stainless Steel Brushed/Power Coating (Optional) |
| 12 | Operation Place |
Subway Station, Hoverport, Tourism, Sports, Exhibition, Swimming Hall, Residence Area, Enterprise Entrance and Exit, Attendance, Gateway Guard, Charge Management, Special Access Control, ect. |
