Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration

China Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration supplier
Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration supplier Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration supplier Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration supplier Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration supplier Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration supplier Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration supplier

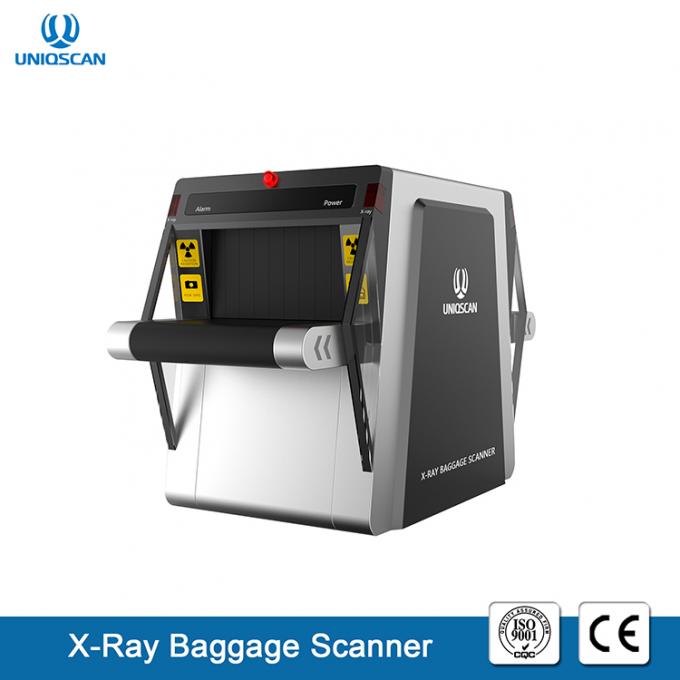

Large Image :  Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration

Product Details:

Place of Origin: ShenZhen,China
Brand Name: Uniqscan
Certification: CE,ISO,RHOS
Model Number: SF5030C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: 1810(L)*910(W)*1450(H)mm.
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100 Set/Day
Contact Now
Detailed Product Description
Tunnel Size :: 500 (W) ×300 (H) Mm Conveyor Speed:: 0.22m/s
Conveyor Max Load:: 150 Kg Single Inspection Dosage:: <1.32μG
Film Safety:: Guarantee ISO1600 Film Leakage Radiation:: <0.06µGy/h
Steel Penetration:: 38mm Wire Resolution:: 40AWG
Spatial Resolution:: 1.0mm Horizontal And Vertical Power Requirement:: 220V AC (±10%) 50±3Hz

UNIQSCAN Airport X-ray Baggage Scanner Luggage Scanner for checking bag in hotel

Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration

Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration

Uniqscan New design Security X-ray Luggage Scanner SF5030C For Supper Marekt Entrance with High penetration



Advantage :


>> 4 corners with the LED light.
>> At the entrance and exit with the emergency button
>> Portable computer display can be locked and safe use.
>> Dual energy with DT Finland detecting board, very clear scanning images
>>LED display can show what you want to show to your customer, like "Security checking , Please don't put your hand inside "
>> This out looking we get suggestion from the TSA counselor from USA, so our machines look more serious and professional.


General Specifications:

Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150 kg
Single inspection dosage: <1.32μG
Film Safety: Guarantee ISO1600 Film
Leakage radiation: <0.06µGy/h
Steel Penetration: 38mm
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Power Requirement: 220V AC (±10%) 50±3Hz

X-RAY GENERATOR:

Tube Current: 0.4-1.2mA(adjustable)
Anode Voltage: 140-160KV(adjustable)
Angle: 80°
Generator cooling: Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT :

Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <55DB

Computer Specification:

Processor: I3-4340 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T
X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:

1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status


Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder


Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number

8. Review feature , recall previously image , zoom overview , step less zoom
