Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System

China Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System supplier
Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System supplier Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System supplier Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System supplier Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System supplier Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System supplier Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System supplier

Large Image :  Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System

Product Details:

Place of Origin: ShenZhen,China.
Brand Name: Uniqscan
Certification: CE,ISO,RHOS
Model Number: UT530-D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: carton package,106X39X47 cm
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 set/ month
Contact Now
Detailed Product Description
Product Name: Automatic Boom Barrier Open/close Time: 1-6s Depends On The Arm Length
Octagonal Arm: 3-6m Power Supply: AC 220V±10%,50/60HZ
AC Motor: 90W Concreted Decelerating Torque Motor Controller: Intel 80C51 MCU, 40 MHz,controlled Silicon Motor Control
Remote Distance: >30M RS 485 Interface: 9600bps, ASCII Decimal Encoded
Housing Material: 2mm Cold-roller Sheet Housing Painting: Automobile Painting, 5 Years Without Rust,shedding And Fading
IP Level: IP 54 Housing Size: 345*310*1000mm
Package Size: 450*420*1200mm G.W: 60 KG
Operating Temperature: -25°c -70°c Humidity: 10%-95%

ODM/OEM Available Automatic Fence Arm Boom Barrier Gate for commercial parking lots



Features :
0.8 second fastest action and 100% duty cycle operation with 5 million MTBF
Easy installation and maintenance reduces your labor cost
Heavy-duty and simple-design housing
System automatically self-checks operation status and reports errors
Sine lever drive mechanism ensures smooth landing of boom without shaking
Anti-collision protects boom arm and vehicle (optional)
Safety--- Anti-hit by pressure resistance bounce
Safety--- Anti-hit by Loop Detector (Optional)
Safety--- Anti-hit by IR photocell (Optional)
Safety--- Anti-hit by "Opening Priority"
Closing Priority
Automatically close after the given time
Automatically close or open by loop detector (Optional)
Manually control in case of no power
Boom open up fully or close down in case of power failure
Anti-condensation in cold climate
Transparent plastic covers on Control Board



Specifications :

Product name automatic boom barrier
Open/close time 1-6s depends on the arm length
Octagonal Arm 3-6m
Power Supply AC 220V±10%,50/60HZ
AC Motor 90W concreted decelerating torque motor
Controller Intel 80C51 MCU, 40 MHz,controlled silicon motor control
Remote distance >30M
RS 485 interface 9600bps, ASCII decimal encoded
Housing material 2mm cold-roller sheet
Housing Painting Automobile Painting, 5 years without rust,shedding and fading
IP level IP 54
Housing size 345*310*1000mm
Package size 450*420*1200mm
G.W 60 KG
Operating temperature -25°c -70°c
Humidity 10%-95%




Characters :

  • For security, the barrier will automatically go back when meet obstacles during closing.
  • Brushless DC motor is more powerful and no maintenance.
  • Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.
  • The barrier can be installation both rightward and rightward.
  • All the operation process is soft without any noise and shaking.
  • Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.
  • Green light and red light are used inside for indication the position of the beam.
  • Manual release device to operate the barrier when power failure.
  • Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.
  • Motor cooling fan to avoid the over-heating possibility.
  • Auto closing realization through menu setting on the control panel.
  • Wire control, remote control optional
  • Infrared protection (requires correlation infrared device)
  • Optional housing color: yellow, orange, white, red and blue etc.
  • Variable frequency controller automatically detects and optimizes boom moving, ensures

 Photo :

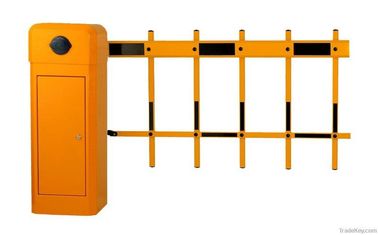

Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System





Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System

The more details, please see below picture.
Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System

Safety Traffic Flap Barrier Gate Two Fence Easy Installation For Parking / Toll System
