Product Details:
Payment & Shipping Terms:
|
| Main Box Packing Size: | 80cm(High) X 27cm (Wide) X 24cm (Deep) | Alarms Stype: | Walk Through Security Metal Detectors |
|---|---|---|---|
| Standard: | ISO19001; ISO14001;CE | Supply Ability: | 2000 PCS Per Month |
| Color: | Gray/Black/White | Power Supply: | 85V-264V AC |
| Sensitivity: | 256 Level | Operating: | -20℃ To 50℃ |
| Screen: | LCD Screen | Warranty: | 2 Years Warranty |
| Material: | High Density Fireproof , Waterproof Material | Waterproof Rate: | IP67 |
| High Light: | walk through security scanners,walk through x ray machine |
||

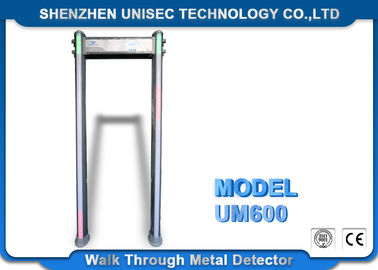

18 zone waterproof rate IP67 PVC material walk through metal detector for outdoor and indoor use
【TECHNICAL PARAMETERS】
External Dimensions:200cm (High) x 71cm (Wide) x 30cm (Deep)
Input voltage: AC85V-264V, 50/60Hz Power: <30W
Gross weight: 75KG
Working temperature: -20℃~ 50℃
Sensitivity: 256 steps adjustable
Alarm: Visible and audible alarm
Inner Dimensions: 200cm(High) x 70cm (Wide) x 60.5cm (Deep)
【Characteristic & Function】
| Model Number | UM600 |
| Vertical dimension | 229cm(High) x 34cm (Wide) x 41cm (Deep) |
| Vertical channel size | 2000x710mm |
| Detection door packing size | 229cm (High) x 34cm (Wide) x 41cm (Deep) |
| Net weight of main box/detection door | 51KG |
| Gross weight of main box/detection door | 55KG |
| Working voltage | 65V~264V 50/60Hz |
| Power consumption | 20W |
| Working frequency range | 4-8KHZ |
| Working environment temperature | -20℃ ~ 55℃ |
| Installation environment | (W) 100cm* (L) 200cm (minimum range without metal) |

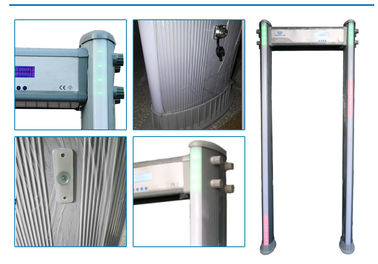

1.Mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 256 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5.Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14.4hours backup battery (Option).
15.With LCD screen, pass counter and alarm counter show on the screen.
16. Waterproof rate:IP67
Application
Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc.
Our advantage
1.Product design, technology development, parts processing and sales integration services
2.One of the world's top four brands, leading technology, quality first, service first-class
3.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
4. Brands cooperation,ODM,OEM
5.Sales of a complete set of technical solutions
6.Technical guidance and training for customers
Our service
Applications
Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails, Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs, secret Meetings and VIP Security, Gymnasium.
