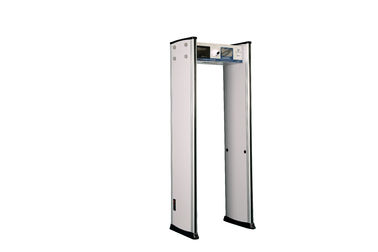

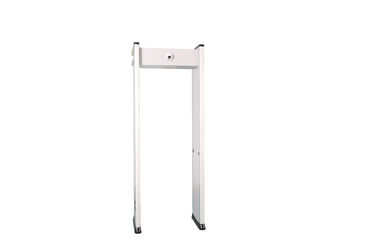

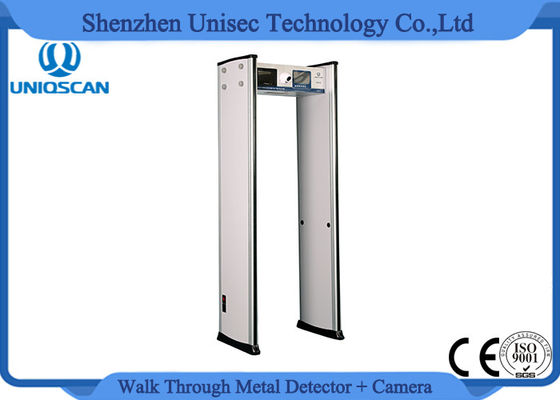

999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera

999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera
999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera 999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera 999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera 999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera 999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera

Large Image :  999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera

Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE , ISO
Model Number: UB800
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $1200/unit
Packaging Details: carton box
Delivery Time: 2-4 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Airport Metal Detector Model: UB800
Sensitivity: 999 Sensitivity Level PASS And ALARM Count: Up To 99999
Working Temperature: -20℃--+50℃ Detecting Zone: 33/36zones
Display Way: 7.0 Inch Screen Gross Weight: 67KG
High Light:

walk through x ray machine

,

walk through safety gate

33/36 Zones Walk Through Metal Detector Gate With Entry And Exit CCTV Camera


Parameters :

Detecting zone: 33/36 zone
Display way: 7 inch color LCD screen
Sensitivity: 0-999 adjustable
Detecting speed: up to 100 passenger/ min.
Working temperature: -20ºC--+50ºC
PASS and ALARM count: up to 99999
Gross weight: 67KG
Warranty: 2 years
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn


CHARACTERISTIC & FUNCTION:

  • 33 detecting zones, Simultaneous alarm from multi- zones;
  • Sensitivity adjustable: Each zone has 999 sensitivity level 0-999 adjustable
  • 7 inch color LCD screen
  • Infrared remote control
  • Using high density fireproof material
  • Automatically count passengers and alarm times
  • PASS and ALARM count: up to 99999
  • High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
  • 15 preset programs for security applications
  • Alarm volume range from level 0 to 9
  • Alarm tones: Change from 1 to 9
  • 100 frequencies for option. To work with neighbouring gates at 50cm
  • Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
  • Detecting speed: up to 100 passenger/ min.
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws,
  • Modularization design,easy for maintenance and replacement.
  • Sensitivity Test piece: One yuan Coin, omnidirectional detection
  • Network support
  • Can be customized 36 zones
  • 4-8 hours backup battery (Option)



Specification of Camera and DVR :

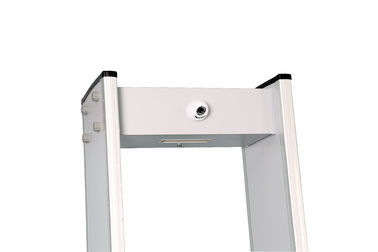

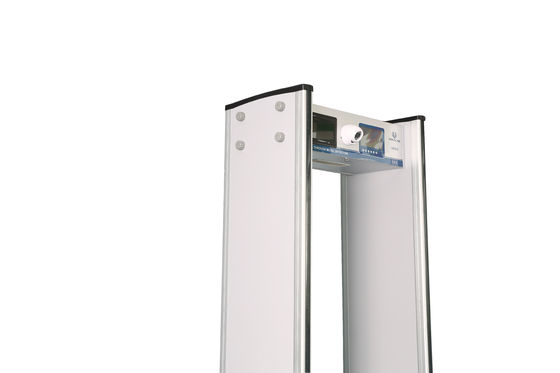

  • Camera: 2 adjustable infrared cameras , one for entry , one for exit
  • Video Input : 2 channel
  • Video output : 1 channel
  • USB slot
  • SD card slot
  • Screen: 7" LCD colored with IR remote control
  • Resolution : 1280*720
  • Audio input : 2 channel Audio output: 1 channel
  • Working mode : video and recording mode-auto/manual
  • Mermory : support 128G removable sd card Power consumption : 5-30V
  • Language : English/Chinese
  • DVR Size : 2.6''x 3.5'' in die cast aluminium body
  • Remote controller IR for control of complete menu on screen display



Specification of Camera:

  • Resolution : 800 line CCD
  • IR bulbs for night viewing with infre red sensor
  • Camera mounted on control box front and back with tilt mounting



Applications:

  • Commercial buildings;
  • Factories(to find needle in clothing, shoes, bags)
  • Courthouses;
  • Embassies;
  • Government buildings;
  • Military installations;
  • Prisons;
  • Hotels;
  • Schools;
  • Convention centers;
  • Security checkpoints.
  • Excellent system for schools, hotels, convention centers and event-based security requirements



Detail Photo :

999 Sensitivity Level Walk Through Metal Detector 33/36 Zones With Entry / Exit CCTV Camera 0
