Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V

China Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V supplier
Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V supplier Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V supplier Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V supplier Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V supplier

Large Image :  Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V

Product Details:

Place of Origin: China
Brand Name: Uniqscan
Certification: CE; ISO9001
Model Number: UB500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $680/unit
Packaging Details: 2290*560*180mm*1cn 760*380*260mm*1cn
Delivery Time: 5-7 work days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 50000 per month
Contact Now
Detailed Product Description
Product Name: Walk Thru Metal Detectors Width: 50cm
Detecting Zone: 6 Zones Display Way: 5 Digital LED Count
Sensitivity: 100 Sensitivity Power Supply: AC85V-264V
Warranty: 2 Years Working Temperature: -20ºC--+50ºC

6 Zones Walk Thru Metal Detector with Two Adjustable Infrared CCTV Cameras



Product Point :

  • 6 detecting zones with full body outlay display
  • Each zone has 100 sensitivity level
  • 7" LCD colored screen for CCTV Camera
  • 2 adjustable infrared cameras , one for entry , one for exit
  • 4 hour inner backup battery
  • If any interesting , let me know , I will send detail video for your reference



Specification of Camera and DVR :

  • Camera: 2 adjustable infrared cameras , one for entry , one for exit
  • Video Input : 2 channel
  • Video output : 1 channel
  • USB slot
  • SD card slot
  • Screen: 7" LCD colored with IR remote control
  • Resolution : 1280*720
  • Audio input : 2 channel Audio output: 1 channel
  • Working mode : video and recording mode-auto/manual
  • Mermory : support 128G removable sd card Power consumption : 5-30V
  • Language : English/Chinese
  • DVR Size : 2.6''x 3.5'' in die cast aluminium body
  • Remote controller IR for control of complete menu on screen display


Specification of Camera:

  • Resolution : 800 line CCD
  • IR bulbs for night viewing with infre red sensor
  • Camera mounted on control box front and back with tilt mounting


Parameters :

Detecting zone: 6 zone
Display way: 5 digital LED count
Sensitivity: 0-100 adjustable
Power Supply: AC85V-264V
Working temperature: -20ºC--+50ºC
Working Frequency: 4KHZ-8KHZ
Gross weight: 70KG
Warranty: 2 years
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn


Characteristic & Function :

  • Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
  • Sensitivity adjustable: Each zone has 100 sensitivity level
  • Sound & LED alarm: Both Side LED indicator ,easily show where the metal is
  • Automatically count passengers and alarm times
  • Alarm strength indicator on control panel
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to follow instruction.
  • Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes,
  • Using high density fireproof material
  • Program Self-diagnostic when power on,no need initial or periodic calibration
  • Modularization design,easy for maintenance and replacement.
  • Sensitivity Test piece: One yuan Coin, omnidirectional detection
  • 4-8 hours backup battery (Option)



Applications:

  • Airports
  • Correctional Facilities
  • Public Buildings
  • Private Buildings
  • Schools
  • Special Events
  • Loss Prevention
  • Nuclear Facilities
  • Transportation Terminals
  • Courthouses
  • Corporate Security
  • Historical Landmarks



We has been supplying quality products worldwide for over 40 countries, 10 years, with wide product line consists of 4 groups, includes:

  • X-Ray Baggage Scanner
  • Walk Through Metal Detector
  • Hand Held Metal Detector
  • Under Vehicle Inspection System



Photo :

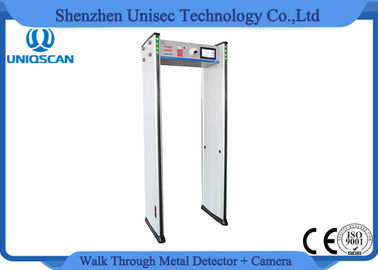

Two Infrared CCTV Cameras Walk Through Security Metal Detectors 6 Zones AC 85V-264V
