Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tripod Turnstile | Dimension: | 420*330*980mm |
|---|---|---|---|
| Material: | 304 # Stainless Steel | Channel Width: | ≤550mm |
| Driving Motor: | 24V | Tickness: | Head: 1.5mm |
| High Light: | tripod security gates,pedestrian turnstile gate |
||

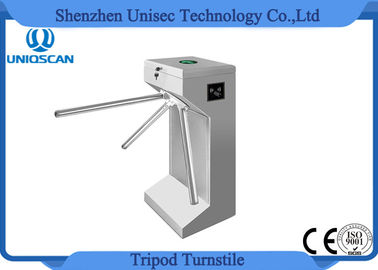

550mm Lane Width Tripod Turnstile Gate With Entry and Exit ID Card System
Technical Parameters :
| Model | UT550-A |
| Brand | UNIQSCAN |

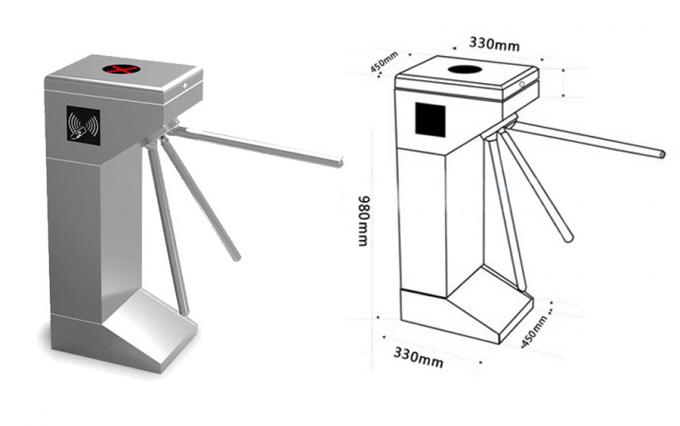

| Dimension | 420*330*980mm |
| Arm length | 500mm(norm) |
| Material | 304 # stainless steel |
| Tickness | Head: 1.5mm , Cabinet:1.2mm |
| Input Voltage | AC220±10%,50HZ |
| Driving motor | 24V |
| Failure-free operation | 5 million/time |
| Weight | 35kg |
| Traffic speed | 35 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤550mm |
| Operating temperature | -30ºC-70ºC |
| Communication interface | RS485/TCP/IP |
| Working environment | indoor and outdoor |
Scope:
Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.
ESD system: Combine with profession ESD tester for factory, special area entrance.
Detail Photo :

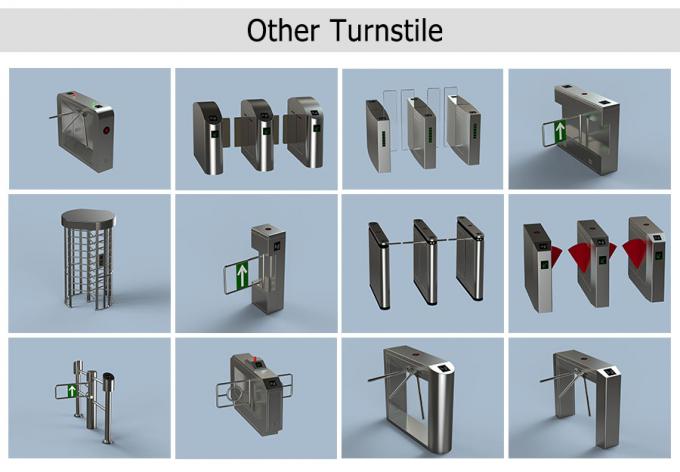

Related Products :
