2.0mm Thickness Tyre Spike Barrier Vehicle Boom Gate 120W 1-6S Open / Close Time

China 2.0mm Thickness Tyre Spike Barrier Vehicle Boom Gate 120W 1-6S Open / Close Time supplier

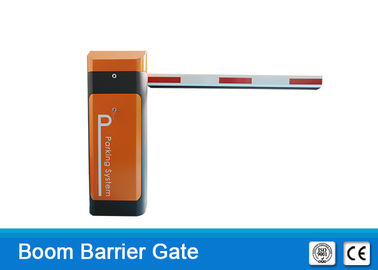

Large Image :  2.0mm Thickness Tyre Spike Barrier Vehicle Boom Gate 120W 1-6S Open / Close Time

Product Details:

Place of Origin: Guangdong, China
Brand Name: UNIQSCAN
Certification: CE, ISO
Model Number: UT530-A

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: Standard Export Carton/ Wooden case
Delivery Time: 5 working days after got the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 700pcs/month
Contact Now
Detailed Product Description
Product Name: Boom Barrier Housing Dimension: 340*283*950mm
Thickness: 2.0mm Open/Close Time: 1-6S
Arm Length: 3-6m Motor: Brushless DC Motor
Power Supply: 220V±10 % /110V±10 % 50/60HZ Rated Power: 120W
Remote Control Distance: >30M Related Humidity: ≤90%

2.0mm Thickness with Brushless DC Montor Vehicle Boom Barrier Gate



Open/Close time 1-6s depends on the arm length
Arm Length 3-6m
Working Temperature -35ºC to +75ºC
MTBF >5million times
Power Supply

220V±10 % 50/60HZ

/110V±10 % 50/60HZ

Rated Power 120W
Related Humidity ≤90%
Remote Control Distance >30M
Net Weight 60KG



Straight Arm Speed (Seconds) 1s 3s 6s
Straight Arm Length ≤3m ≤4.5m ≤6m





For security, the barrier will automatically go back when meet obstacles during closing.

Brushless DC motor is more powerful and no maintenance.

Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.

The barrier can be installation both rightward and rightward.

All the operation process is soft without any noise and shaking.

Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.

Green light and red light are used inside for indication the position of the beam.

Manual release device to operate the barrier when power failure.

Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.

Motor cooling fan to avoid the over-heating possibility.

Auto closing realization through menu setting on the control panel.

Wire control, remote control optional

Infrared protection (requires correlation infrared device)

Optional housing color: yellow, orange, white, red and blue etc.

Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake

System automatically self-checks operation status and reports errors code

Simplified design, easy installation and maintenance reduces your labor cost

Closing Priority

The crank-arm linkage structure adapts to the compression spring, which can be selected to avoid accidents caused by the spring breaking.

RS 485 Communication Module is compatible (Optional)

Boom swing-off protects boom and vehicle (optional)

Alarm when boom swing-off (optional)

Automatically close after the given time (programmable)

Automatically close or open by loop detector (Optional)

Heavy-duty and simple-design housing

Anti-condensation in cold climate

Transparent plastic covers on Control Board



Parking lots, toll gates, border, Goods yards, Railway crossings, Commercial premises, Apartment block access, housing estate etc.
