Payment & Shipping Terms:
|Main Box Packing Size:||80cm(High) X 27cm (Wide) X 24cm (Deep)||Alarms Stype:||Walk Through Security Metal Detectors|
|Standard:||ISO19001; ISO14001;CE||Supply Ability:||2000 PCS Per Month|
|Color:||Gray/Black/White||Power Supply:||85V-264V AC|
|Sensitivity:||256 Level||Operating:||-20℃ To 50℃|
|Screen:||LCD Screen||Warranty:||2 Years Warranty|
|Material:||High Density Fireproof , Waterproof Material||Waterproof Rate:||IP67|

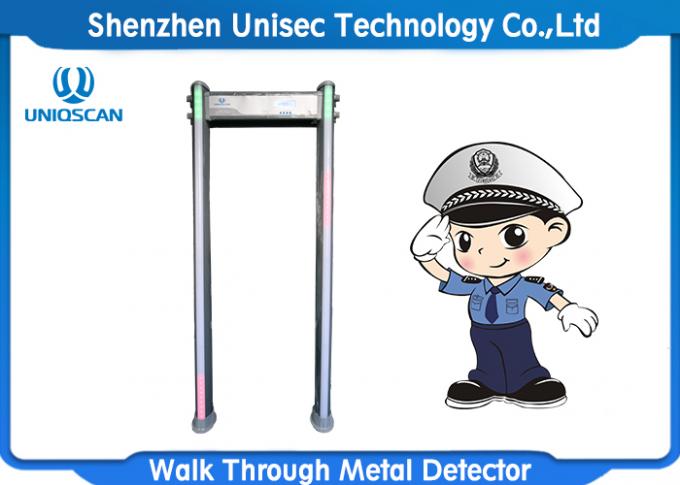

Waterproof Security Gate Door Frame Walk Through Metal Detector
External Dimensions:200cm (High) x 71cm (Wide) x 30cm (Deep)
Input voltage: AC85V-264V, 50/60Hz Power: <30W
Gross weight: 75KG
Working temperature: -20℃~ 50℃
Sensitivity: 256 steps adjustable
Alarm: Visible and audible alarm
Inner Dimensions: 200cm(High) x 70cm (Wide) x 60.5cm (Deep)
【Characteristic & Function】
|Vertical dimension||229cm(High) x 34cm (Wide) x 41cm (Deep)|
|Vertical channel size||2000x710mm|
|Detection door packing size||229cm (High) x 34cm (Wide) x 41cm (Deep)|
|Net weight of main box/detection door||38KG|
|Gross weight of main box/detection door||48KG|
|Working voltage||65V~264V 50/60Hz|
|Working frequency range||4-8KHZ|
|Working environment temperature||-20℃ ~ 55℃|
|Installation environment||(W) 100cm* (L) 200cm|
(minimum range without metal)
1.Mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 256 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5.Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14.4hours backup battery (Option).
15.With LCD screen, pass counter and alarm counter show on the screen.
16. Waterproof rate:IP67
Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc.
1.Product design, technology development, parts processing and sales integration services
2.One of the world's top four brands, leading technology, quality first, service first-class
3.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
4. Brands cooperation,ODM,OEM
5.Sales of a complete set of technical solutions
6.Technical guidance and training for customers
Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails, Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs, secret Meetings and VIP Security, Gymnasium.
Other hot selling products

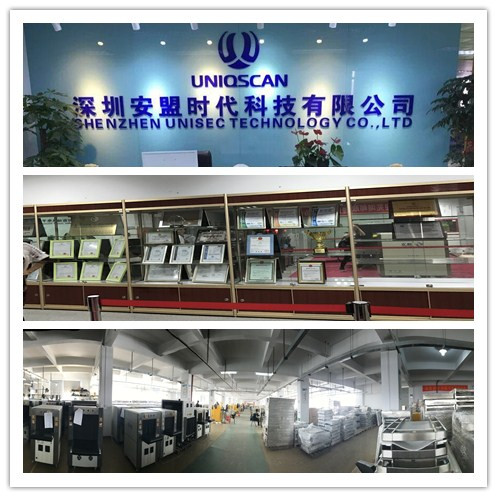

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.
We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.
Contact Person: Andy Lee
