33 mutual over-lapping detecting zones and 999 sensitivity level walk through metal detector UB800 for school and bar.

33 mutual over-lapping detecting zones and 999 sensitivity level walk through metal detector UB800 for school and bar.

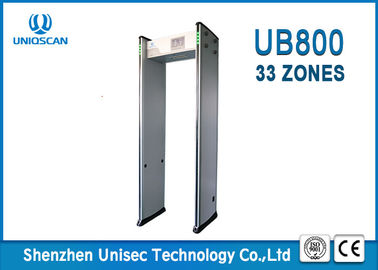

WALK THROUGH METAL DETECTOR
MODEL:UB800

33 zones

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door panels: 2280*560*180mm *1ctn

Package size for control unit: 760*390*270 mm*1ctn

Gross weight: 65KG

Characteristic & FEATURES

• 33 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 999 sensitivity level
• 7 inch color LCD screen
• Infrared remote control
• Using high density fireproof material
• 5 digits counter. Automatically count passengers and alarm times
• High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
• 15 preset programs for security applications
• Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
• 100 frequencies for option. To work with neighbouring gates at 40cm
• Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
• Detecting speed: up to 100 passenger/ min.
• Alarm volume range from level 1 to 9
• Alarm tones: Change from 0 to 9 (10 different tones for choosing)
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4 hours backup battery (Option)
