Full Body Multi Zone Metal Detector Walk Through Safety Gate For Jail Metro , High Sensitivity

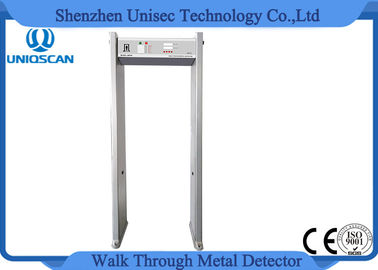

Large Image : Full Body Multi Zone Metal Detector Walk Through Safety Gate For Jail Metro , High Sensitivity

Product Details:

Place of Origin:	China
Brand Name:	UNIQSCAN
Certification:	CE,ISO9001
Model Number:	UB500-E

Payment & Shipping Terms:

Minimum Order Quantity:	20 units
Price:	Negotiable
Packaging Details:	Carton boxes
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Name:	Walk Through Metal Detector	Zones:	6 Zones
Material:	High Density Wood	Sensitivity:	0-99
Warranty:	2 Years	Origin:	China
Socket:	2 Sides	Display:	On The Top With The Light
High Light:	walk through security scanners , walk through x ray machine

Full Body Multi Zone Metal Detector Walk Through Safety Gate For Jail Metro , High Sensitivity

MODEL:UB500-E

Parameters :

Detecting zone:	6 zone
Display way:	5 digital LED count
Sensitivity:	0-100 adjustable
Power Supply:	AC85V-264V
Working temperature:	-20℃--+50℃
Working Frequency:	4KHZ—8KHZ
Gross weight:	70KG
Warranty:	2 years
Standard External size:	2200mm(H)X800mm(W)X580mm(D)
Standard Internal size:	2010mm(H)X700mm(W)X500mm(D)
Package size for door panels:	2260650260mm *1ctn
Package size for control unit:	780390250 mm*1ctn

Full Body Multi Zone Metal Detector Walk Through Safety Gate For Jail Metro , High Sensitivity 0

Characteristic & Function :

Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable: Each zone has 100 sensitivity level
Sound & LED alarm: Both Side LED indicator ,

easily show where the metal is.

Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design,easy for maintenance and replacement.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)
