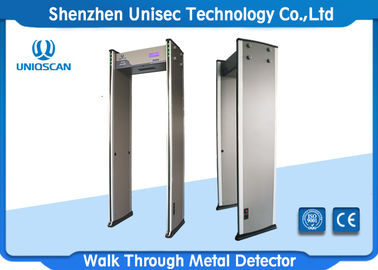

walk through metal detector UB600 with high density fireproof material and high sensitivity for metro and school.etc.

walk through metal detector UB600 with high density fireproof material and high sensitivity for metro and school.etc.

MODEL:UB600

6/12/18 zones

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door panels: 2290*560*180mm *1ctn

Package size for control unit: 760*380*260 mm*1ctn

Gross weight: 63KG

Characteristic & Function

• 18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Small LCD screen, English operating software, easy to operate.
• Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable
• Sound & LED alarm: Both Side LED indicator ,

easily show where the metal is.

• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design,easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)

Application

Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc
