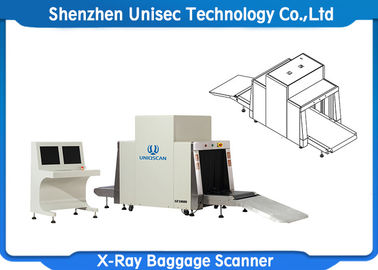

Big Size X Ray Luggage Scanner SF10080 With High Resolution Color LCD Screen

China Big Size X Ray Luggage Scanner SF10080 With High Resolution Color LCD Screen supplier
Big Size X Ray Luggage Scanner SF10080 With High Resolution Color LCD Screen supplier Big Size X Ray Luggage Scanner SF10080 With High Resolution Color LCD Screen supplier

Large Image :  Big Size X Ray Luggage Scanner SF10080 With High Resolution Color LCD Screen

Product Details:

Place of Origin: China
Brand Name: UNIQSCAN
Certification: CE ISO
Model Number: SF10080

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 pieces/month
Contact Now
Detailed Product Description
X-ray Divergence Angle::: 80 ° Film Safety::: For ISO1600
Anode Voltage::: 100~160KV(adjustable) Steel Penetration::: 38mm Steel Plate
Leakage Radiation Dosage::: ≤ 0.2μGy/h Wire Resolution::: 40AWG
Conveyor Max Load::: 230 Kg Conveyor Speed::: 0.22m/s
Single Inspection Dosage::: < 1.5μGy Tunnel Size ::: 1000(W)*800(H)(mm)

Dual energy with high resolution color LCD screen, big size used in airport X-ray baggage scanner metal detector machine


1,Company instructions
ABOUT US
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.


2,Specification

Tunnel Size : 1000 (W) *800 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 230 kg

Single inspection dosage: < 1.5μGy
Leakage radiation: <0.2µGy/h

Wire Resolution: 40AWG

Steel Penetration: 38mm

Film Safety: For ISO 1600



X-RAY GENERATOR

Orientation: Downward

Tube Current:0.4~1.2mA(adjustable)

Anode Voltage:100~160KV(adjustable)

Angle: 80°

Generator cooling/working periods: Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity: 20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<58DB

X-RAY Sensor:

L-shaped array detector 24bit

Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier:                         Partial magnifying function
Brightening/dimming:       Increase/Decrease brightness of image
Image recurrence:              Display the previous twenty images and process any one of them
Image restoration:             Restore image to initial status
Image storage:                   Real-time store any image and process it in operation status



Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue,

mixture in green

Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance.



3,Detailed parts

high solution scanning pic 3

1

Big Size X Ray Luggage Scanner SF10080 With High Resolution Color LCD Screen


4. Our serviceservice





5,FAQ
FAQ

Big Size X Ray Luggage Scanner SF10080 With High Resolution Color LCD Screen
