6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

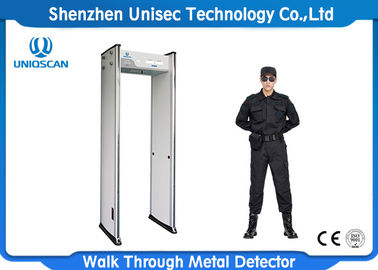

6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection

Product Details:
Place of Origin: Shenzhen
Brand Name: UNIQSCAN
Certification: CE; ISO9001;ISO14001
Model Number: UB500
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: 224cm (High) x 99cm (Wide) x 30cm (Deep)
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram, Cash.
Supply Ability: 1000pcs per month
Detailed Product Description
Main Box Packing Size: 200cm(High) X 71cm (Wide) X 30cm (Deep) Alarms Stype: Sound & Led Alarm
Standard: CE; ISO9001;ISO14001 Supply Ability: 1500 PCS Per Month
Color: Gray/Black/White Power Supply: 85V-265V AC
Sensitivity Sensitivity: 100 Level Operating: -20℃ To 50℃
Material: Brush Real Wood Warranty: 2 Years Warranty
High Light:

metal detector security gate

,

dfmd metal detector

6/12/18 Zone High Quality Security Guard Metal Detector Body Scanner For Safely Detection

【TECHNICAL PARAMETERS



External Dimensions:229cm (High) x 56cm (Wide) x 19cm (Deep)

Input voltage: AC85V-264V, 50/60Hz Power: <30W

Gross weight: 67KG

Working temperature: -20℃~ 50℃

Sensitivity: 100 steps adjustable

Alarm: Visible and audible alarm

Inner Dimensions: 200cm(High) x 70cm (Wide) x 60.5cm (Deep)

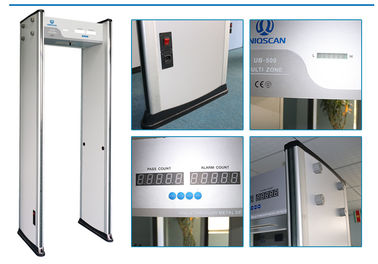

6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection 0



Characteristic & Function

Model Number UB500
Vertical dimension 229cm(High) x 56cm (Wide) x 19cm (Deep)
Vertical channel size 2000x700mm
Detection door packing size 229cm (High) x 56cm (Wide) x 19cm (Deep)
Net weight of main box/detection door 62KG
Gross weight of main box/detection door 67KG
Working voltage 65V~264V 50/60Hz
Power consumption 20W
Working frequency range 4-8KHZ
Working environment temperature -20℃ ~ 55℃
Installation environment (W) 100cm* (L) 200cm
(minimum range without metal)

1.Six mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 100 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5. Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy,

recording tapes,etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14.4-8 hours backup battery (Option).



Our advantage



1.Product design, technology development, parts processing and sales integration services
2.One of the world's top four brands, leading technology, quality first, service first-class
3.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need

4. Brands cooperation,ODM,OEM
5.Sales of a complete set of technical solutions
6.Technical guidance and training for customers



Our service

  1. Technical support and 2 Years warranty
  2. Documents support
  3. Customer clearance assistance
  4. Support OEM OrODM
  5. 100% quality guarantee
  6. 7 days/24 hours service

Applications



Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails, Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs, secret Meetings and VIP Security, Gymnasium

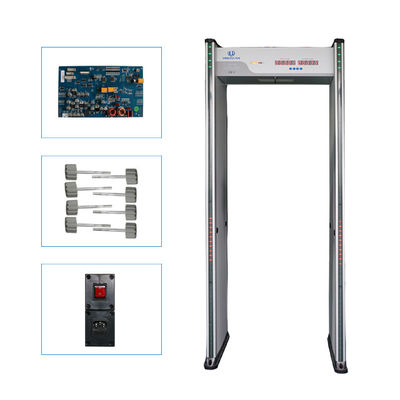

6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection 1



Company profile



    Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection 2

   We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.

   We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.



6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection 3


6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection 4
6/12/18 Zone Security Guard Metal Detector Body Scanner For Safely Detection 5
