1m*1m Tunnel Size Dual View Baggage Security X-Ray Machines One-key Shutdown Control

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

1m*1m Tunnel Size Dual View Baggage Security X-Ray Machines One-key Shutdown Control

large.img.alt
small.img.alt

Large Image :  1m*1m Tunnel Size Dual View Baggage Security X-Ray Machines One-key Shutdown Control

Product Details:
Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE , ISO
Model Number: SF100100D
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD
Packaging Details: WOODEN BOX
Delivery Time: IN ONE WEEK
Payment Terms: T/T, Western Union
Supply Ability: 500 UNITS FOR ONE MONTH
Detailed Product Description
Product Name: Dual View X Ray Baggage Scanner Tunnel Size: 1000(W) X1000 (H) Mm
Conveyor Max Load: 300kg Conveyor Speed: 0.22m/s
Noise Level: <58dB Anode Voltage: 140~160KV
Spatial Resolution: 1.0mm Horizontal And Vertical Steel Penetration: 34mm
High Light:

airport luggage scanner

,

airport x ray scanner

1m*1m Tunnel Size Airport Scanners Dual View Baggage Security X-Ray Machines



Advantage :
1.With equipment to save electricity
2. X-ray generator is from Beijing KV tech
3. Interroll from Germany
4. Receiver from DEETEE Finaland
5. Protective cover on lead curtain to avoid lead pollution;
6. Local network supported
7. One-key shutdown control
8. Self-diagnosis function
9. TIP and training software , free programmable keys , real time diagnostic


General Specification:

Tunnel Size : 1000(W) ×1000 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 300kg
Wire Resolution: 38AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 34mm
Single inspection dosage: < 1.2μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film


X-Ray Generator Specifications:

Tube Current: 0.7~1.2mA
Anode Voltage: 140~160KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward and Sideward
Beam Angle: 80°
Detector: L-shaped Array * 2


Environment Specifications:

Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T


Image Display:
1. 19'' High Resolution LCD Monitor *2
2. Display Resolution: 1280*1024;24 bit/pixel Color
3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
4. Image storage: 200,000 pictures in real time (can be customized)
5. Zoom: 64 Times Enlarge, Whole screen continuous observation
6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
7. Edge enhancement: Object contour edge is more distinct
8. Super image enhancement: Image detail is more distinct
9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
11. Brightening/dimming: Increase/Decrease brightness of image
12. Image recurrence: Display the previous twenty images and process any one of them
13. Image restoration: Restore image to initial status
14. Assist to detect drug and explosive powder

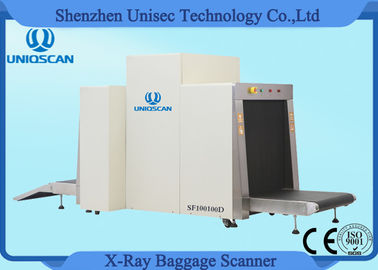

Photo:

1m*1m Tunnel Size Dual View Baggage Security X-Ray Machines One-key Shutdown Control 0



UNIQSCAN project:

1m*1m Tunnel Size Dual View Baggage Security X-Ray Machines One-key Shutdown Control 1
