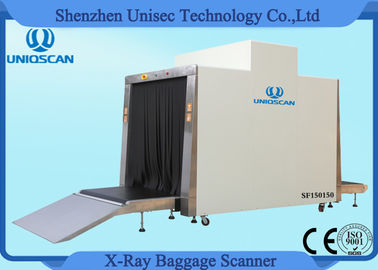

Big Size Security X Ray Machine 1.5*1.5m Opening Size for Logistics , Customs

large.img.alt
small.img.alt

Large Image :  Big Size Security X Ray Machine 1.5*1.5m Opening Size for Logistics , Customs

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF150150
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: in one week
Payment Terms: T/T, , L/C, Western Union
Supply Ability: 50sets/week
Detailed Product Description
Product Name: Secutiry Baggage Scanner Tunnel Size: 1500 (W) ×1500 (H) Mm
Conveyor Max Load: 500 Kg Power Wastage: 1.0 KW (Max)
Wire Resolution: 36AWG Noise: <58DB
Tube Current: 0.4~1.0mA Conveyor Speed: 0.22m/s
High Light:

airport x ray machine

,

airport x ray scanner



Big Size X-Ray Baggage Scanner 1.5*1.5m Opening Size For Logistics , Customs



General Specification:

Tunnel Size : 1500 (W) ×1500 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 500 kg
Wire Resolution: 36AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 34mm
Single inspection dosage: < 1.6μGy
Leakage radiation: <0.2µGy/h
Film Safety: Guarantee ISO1600 Film


X-Ray Generator Specifications:

Tube Current: 0.4~1.0mA
Anode Voltage: 80~160KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward
Beam Angle: 80°
Detector: L-shaped Array * 1


Environment Specifications:

Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T


Image Display:
1. 19'' High Resolution LCD Monitor *2
2. Display Resolution: 1280*1024;24 bit/pixel Color
3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
4. Image storage: 100,000 pictures in real time (can be customized)
5. Zoom: 64 Times Enlarge, Whole screen continuous observation
6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
7. Edge enhancement: Object contour edge is more distinct
8. Super image enhancement: Image detail is more distinct
9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
11. Brightening/dimming: Increase/Decrease brightness of image
12. Image recurrence: Display the previous twenty images and process any one of them
13. Image restoration: Restore image to initial status
14.Assist to detect drug and explosive powder


Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom



Size :

Big Size Security X Ray Machine 1.5*1.5m Opening Size for Logistics , Customs 0



UNIQSCAN Baggage Scanner Project For PyeongChang 2018 Winter Olympics

Big Size Security X Ray Machine 1.5*1.5m Opening Size for Logistics , Customs 1
